Course notes by Gregor v. Bochmann, University of Ottawa
Remote Procedure calls (or remote method invocations)
- The notion of Remote Procedure Call (RPC) was introduced in the 1980ies.
It is like a procedure call, except that the caller and the callee reside
in different computers. Therefore the information concerning the procedure
call must be passed between these computers in the form of some agreed protocol.
Different RPC protocols have been defined and implemented. Such a protocol
needs a reliable message transmission medium (for instance TCP or a secure
session could be used for this purpose) and must foresee at least two protocol
message:
- RPC request: It must include the following information
- identification of the process (or object instance) that should execute
the procedure call. Note: The IP address used by the TCP connection
identifies already the computer on which the process resides; the part number
used by TCP may identify an application process in that computer which understands
the RPC protocol; the message should include enough information to identify
the process or object instance (within the context of that application) which
should perform the requested operation.
- name of the method (procedure) to be called
- values of the input parameters, or pointers to the parameters (which
must be valid pointers in the context of the process performing the operation)
- When the procedure is executed, an RPC response message is returned
which must include the following information
- result parameter(s) of the operation call
- any exceptional conditions that may have occurred
- While the nature of the information exchanged in an RPC protocol
is always similar to what is said above, the way this information is encoded
depends very much on the particular protocol. The following RPC protocols
are to be mentioned:
- CORBA was designed to realize RPC for object-oriented systems where
the software components within the different computers could be written in
different languages (language heterogenity). It is based on the standardization
effort on Open Distributed Processing (in the early 1990ies) which had the
aim of facilitating the interworking between heterogeneous systems and considered
that the early system design stages should be transparent to several dimensions,
including the physical distribution of the different system functions (see Corba-ODP comparison slide) <<
On Corba, see for instance the book [Bake 97] S. Baker, CORBA Distributed
Objects: Using Orbix, Addison-Wesley, 1997. >>
- CORBA introduced the IDL notation for writing abstract class interfaces
which can be automatically translated into equivalent interfaces in the
programming language that is used for the implementation of one of the CORBA
component implementations.
- CORBA uses a particular RPC protoco,l called IIOP.
- In this context, the notion of stub (also called proxy) and skeleton became popular (see

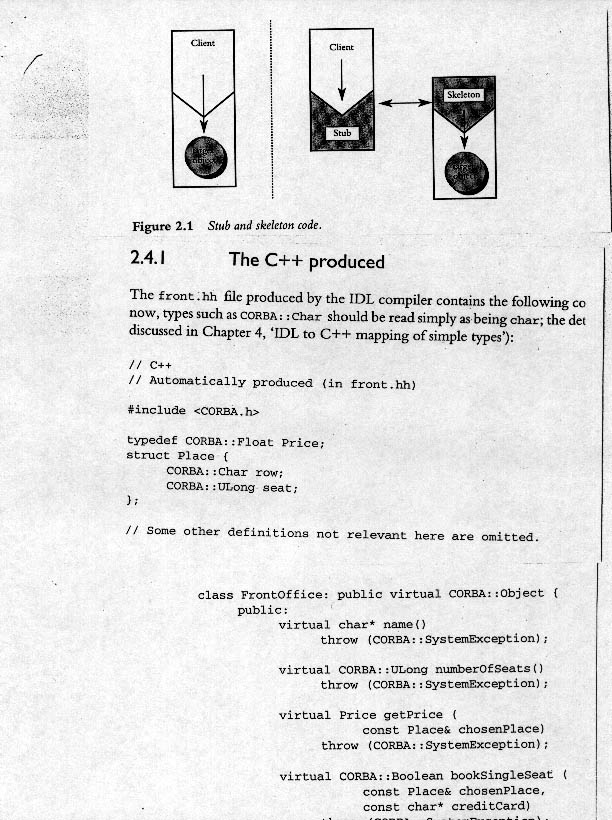

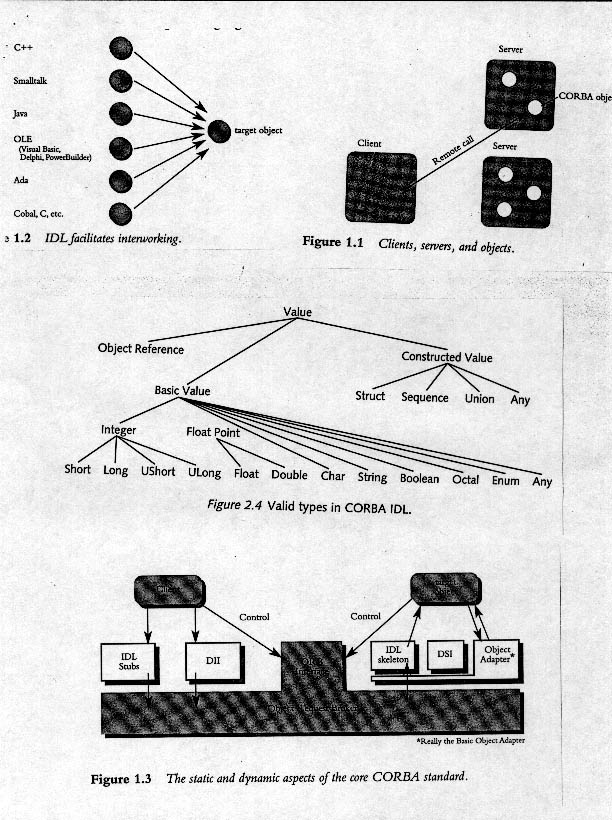

also RMI below). Here are some slides: ORB-structure , Stub-and-Skeleton
- CORBA also introduced the directory service which allows a client
program to find a globally valid pointer to an object instance which has previously
been registered in that directory under a given name (which must be known
to the client). Usually, only the first remote object instance will be found
through the directory, other object references may be obtained as results
from method calls during the execution of a distributed application.
- The term Remote Method Invokation (RMI) was used for the RPC facility
included in the Java plateform. See basic tutorial (only
the first section "Getting started using RMI" is discussed in the course)
<< there is also a more advanced tutorial on RMI and a white paper can be found on the "RMI home page" at http://www.oracle.com/technetwork/java/javase/tech/index-jsp-138781.html >>
- For the transfer of object instances that are passed by value (as method call parameters, or in results), the Java RMI protocol uses the object serialization protocol
of Java.
- RMI also uses proxies to locally represent the remote service object.
- Note: Java RMI can also be used with the CORBA RPC protocol
IIOP, thus building CORBA components using a version of the Java RMI API.
<< see http://docs.oracle.com/javase/6/docs/technotes/guides/rmi-iiop/index.html >
- SOAP - the Simple Object Access Protocol used for Web Services, is yet another way of defining
remote method invokation on objects << see defining document by
W3C at http://www.w3.org/TR/SOAP/ >>
- This protocol is based on XML. The
called process is identified by an URL and the method call and its parameters
are coded in XML like a struct structure, as discussed in the article
by D. Carlson above (the name of the method is treated like the name of
the struct type, the parameters like the fields of the structure)
. The RPC message format foresees a so-called header component which
is interpreted and possibly modified by intermediate processes. The body
component contains the actual method call information.
Last updated: September 11, 2002 (revised 2003, 2012, 2013)
